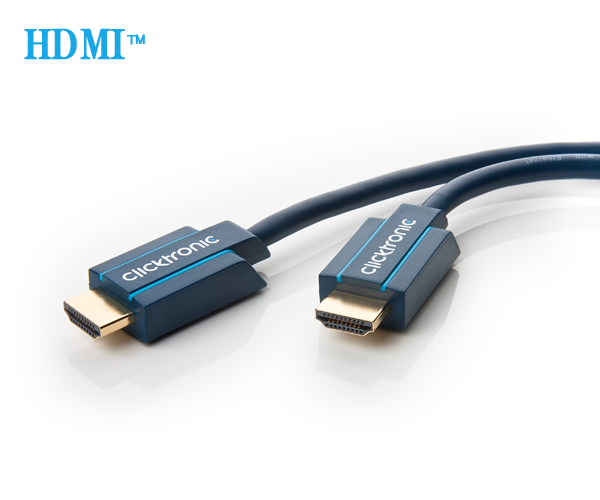

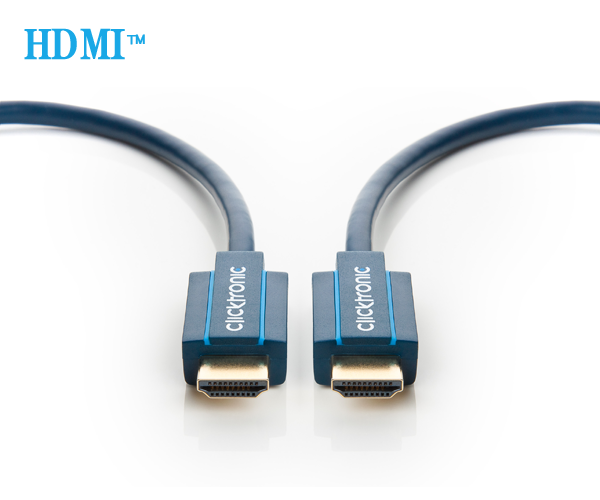

High Speed HDMI™ cable with Ethernet
- No.70301 - 1.00m
- No.70303 - 2.00m
- No.70304 - 3.00m
High Speed HDMI仕様で最新の3Dや4K規格に対応し、高解像度で高画質を実現。 高い透明度で、映画やゲームをより鮮明に楽しむことが可能です。 HDMI with Ethernetに対応した製品では、Full HD映像の他にインターネット情報も伝送することが可能です。 リビングルームやサウンドシステムをワンランク上のAV環境へと変貌させ、 経験したことのない新しい映像体験と利便性を得ることが可能です。
Connectors |
|
|---|---|
| Plug material | triple-coated PVC / ABS |
| Contact material | 24-Karat gold plated |
| Shielding | yes |
| Port 1, type | HDMI™ connector (type A) |
| Connector 1, connector length (mm) | 42.1(1-3m) 47.3(5-7.5m) |
| Connector 1, connector width (mm) | 20.4(1-3m) 20.9(5-7.5m) |
| Connector 1, connector height (mm) | 11.4 |
| Port 2, type | HDMI™ connector (type A) |
| Connector 2, connector length (mm) | 42.1(1-3m) 47.3(5-7.5m) |
| Connector 2, connector width (mm) | 20.4(1-3m) 20.9(5-7.5m) |
| Connector 2, connector height (mm) | 11.4 |
Cable |
|
| Type | Round cable |
| Length (m) | 0.5-1-1.5-2-3-5-7.5 |
| Inner conductor material | OFC (Oxygen free copper) |
| Inner conductor diameter (mm) | 1x0.250(1-3m) 1x0.410(5m) 7x0.20(7.5m) |
| AWG | 30(1-3m) 26(5 m) 24(7.5 m) |
| Number of shieldings | 2 x |
| Type of 1st shielding | Aluminium foil |
| Type of 2nd shielding | Copper braid 112 wires x 0.10 mm cross section (0.5-3m) Copper braid 160wires x 0.10 mm cross section (5-7.5m) |
| Outer sheath material | highly elastic PVC |
| Outer sheath diameter (mm) | 6(1-3m) 8(5m) 9.5(7.5m) |
| Kink protection | on both sides |
Signal transmission |
|
| Transmission modes | digital audio and video signals |
| max. Bandwidth (MHz) | 340 |
| max. transfer rate (Gb / s) | 10.2 |
| max. resolution | 4K (2160p) |
| supported color spaces | 16/24 bit RGB/YUV, Deep Color, x.v.Color™ |
| supported audio standards | Audio-Return Channel (ARC), Dolby Digital/Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD-Audio, SA-CD |
| other supported standards | HDMI™ Ethernet Channel (HEC), 3D, HDCP, CEC, 4K (2160i/p), Full HD (1080i/p), HD ready (720i/p), SDTV (480i/p) |
| Characteristic impedance (Ω) | 100 |
General |
|
| Operating temperature from / to (℃) | -10 / +80 |
| Certification | (ATC) Authorized Testing Centers |
| Warranty (years) | 10 |
