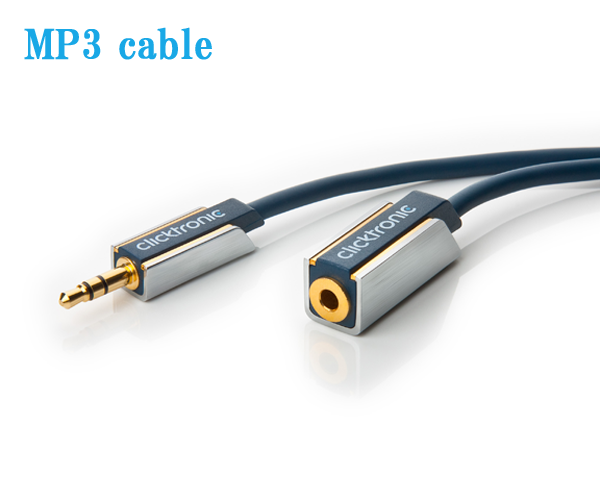

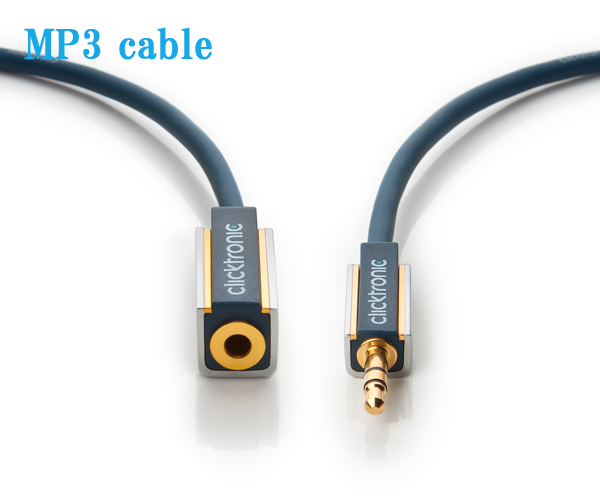

MP3 audio Extension
- No.70686 - 1.00m
3.5mmステレオミニジャックケーブルが短く、延長する必要のあるユーザーのための、手軽な延長ケーブルです。 音質＆デザイン性に優れ、よりアーティスティックに独創的な環境を演出します。 ケーブル全体をカバーする複数の防磁シールド、厳選した材料、そして非常に精密な技術力で音響学的に理想的な結合環境を実現。ポータブル機器やAV機器のイヤフォン出力端子など、様々な延長ケーブルとして使用することができます。

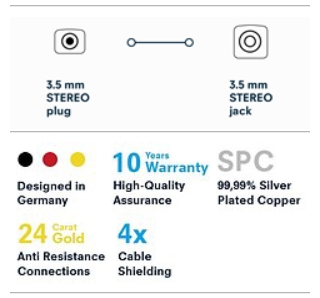

Connectors |
|
|---|---|
| Plug material | High precision full metal |
| Contact material | 24-Karat gold plated |
| Shielding | yes |
| Port 1, type | 3.5 mm stereo plug |
| Connector 1, connector length (mm) | 30.3 |
| Connector 1, connector width (mm) | 9.8 |
| Connector 1, connector height (mm) | 8 |
| Port 2, type | 3.5 mm STEREO jack |
| Connector 2, connector length (mm) | 37.5 |
| Connector 2, connector width (mm) | 12 |
| Connector 2, connector height (mm) | 12.5 |
Cable |
|
| Type | Round cable |
| Length (m) | 1.5-3-5 |
| Inner conductor material | SPC (silver plated, oxygen free copper) |
| Inner conductor diameter (mm) | 2 x 25 x 0,120 |
| AWG | 23 |
| Number of shieldings | 4 x |
| Type of 1st shielding | Aluminium foil |
| Type of 2nd shielding | Copper braid 42 wires x 0.12 mm cross section |
| Type of 3rd shielding | Aluminium foil |
| Type of 4th shielding | fully conductive and shielding PVC |
| Outer sheath material | highly elastic PVC |
| Outer sheath diameter (mm) | 3.85 |
| Kink protection | on both sides |
Signal transmission |
|
| Transmission modes | analog audio signals |
| max. Bandwidth (MHz) | 10 |
| Capacitance (pF) | 155 |
| Characteristic impedance (Ω) | 50 |
General |
|
| Operating temperature from / to (℃) | -10 / +80 |
| Warranty (years) | 10 |
