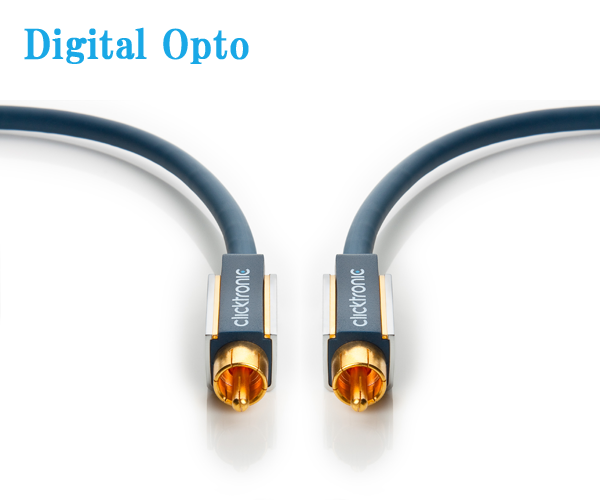

Coaxial Audio cable
ㆍ No.70643 - 1.00m
ㆍ No.70643 - 1.00m
大切なひと時を最高のサウンドで体験したいのであれば、是非このケーブルをお試しください。 ケーブル全体をカバーする複数の防磁シールドにより、デジタルオーディオ信号に影響する 微弱な電磁ノイズを防ぎ、厳選された線材に伝導率の高い銀メッキコーティングを施し、 ピュアで歪のないクリアな伝送を実現。デジタルの輝きが、より一層鮮やかに響きます。
Connectors |
|
|---|---|
| Plug material | High precision full metal |
| Contact material | 24-Karat gold plated |
| Shielding | yes |
| Port 1, type | RCA plugs (RCA) |
| Connector 1, connector length (mm) | 39.8 |
| Connector 1, connector width (mm) | 14 |
| Connector 1, connector height (mm) | 14 |
| Port 2, type | RCA plugs (RCA) |
| Connector 2, connector length (mm) | 39.8 |
| Connector 2, connector width (mm) | 14 |
| Connector 2, connector height (mm) | 14 |
Cable |
|
| Type | Round cable |
| Length (m) | 0.5-1-2-3-5-7.5-10-15-20 |
| Inner conductor material | SPC (silver plated, oxygen free copper) |
| Inner conductor diameter (mm) | 25 x 0.120 |
| AWG | 23 |
| Number of shieldings | 4 x |
| Type of 1st shielding | Aluminum foil |
| Type of 2nd shielding | Copper braid 96 wires x 0.12 mm cross section |
| Outer sheath material | highly elastic PVC |
| Outer sheath diameter (mm) | 6 |
| Kink protection | on both sides |
Signal transmission |
|
| Transmission modes | analog audio signals |
| max. Bandwidth (MHz) | 10 |
| Capacitance (pF) | 155 |
| Characteristic impedance (Ω) | 75 |
General |
|
| Operating temperature from / to (℃) | -10 / +80 |
| Warranty (years) | 10 |
