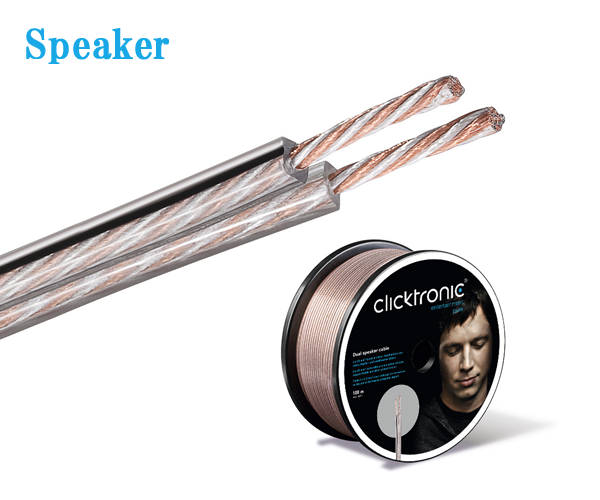

Dual speaker cable
- No.52810 - 1.00 ∼ 10.00m
デュアルスピーカーケーブルは非常に純度の高い銅に銀メッキ処理を施し、全ての周波数帯域(高･中･低)において理想的な信号を伝送を実現。繊細でダイナミックなサウンドを楽しむ事ができます。
Connectors |
|
|---|---|
| Port 1, type | open cable end |
| Port 2, type | open cable end |
Cable |
|
| Type | 2 x Round cable |
| Length (m) | 100 |
| Inner conductor material | OFC (Oxygen free copper) |
| Inner conductor diameter (mm) |
3 x 392 wires x 0.09 (2 x 2.5) 2 x 630 wires x 0.09 (2 x 4.0) |
| AWG | 13 11 |
| Outer sheath material | highly elastic PVC |
| Outer sheath diameter (mm) | 5.0 x 10.0 5.5 x 11.0 |
Signal transmission |
|
| Transmission modes | digital and analog audio signals |
| supported audio standards | Stereo audio |
| other supported standards | Positive polarity identification with squared cable sheath |
| Capacitance (pF) | 63.6 66.9 |
| Characteristic impedance (Ω) | 7.4 4.5 |
| Insulation resistance (MΩ/km) | 0.75 0.6 |
General |
|
| Weight (kg) | 12.4 16.7 |
| Operating temperature from / to (℃) | -20 / +60 |
| Warranty (years) | 10 |
